Battery-Gas Turbine Hybrid System Up And Running

18 April 2017

GE and Southern California Edison (SCE) unveiled what the companies said was the world’s first battery-gas turbine hybrid system, the first of two units that GE has delivered only months after announcing initial deployment plans.

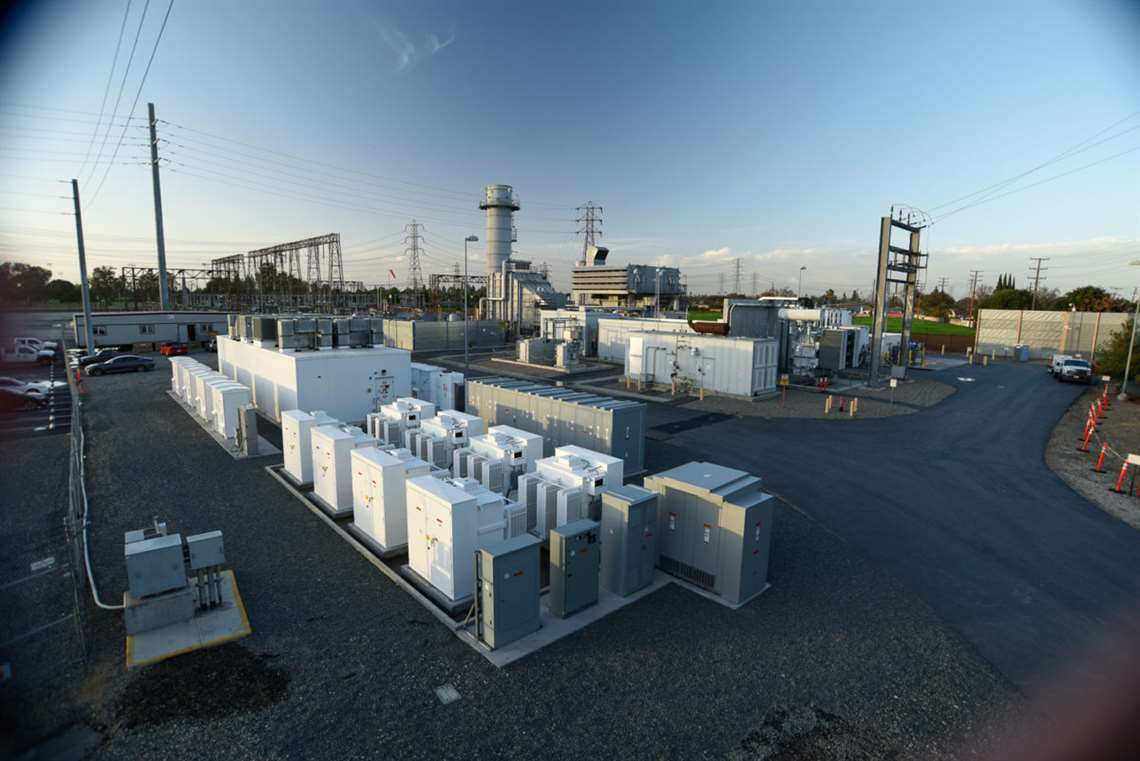

This system, called the LM6000 Hybrid Electric Gas Turbine (Hybrid EGT), supports SCE’s increasing renewable energy capacity by providing quick start, fast ramping capabilities when they are needed and was put into operation March 30. The system was installed in Norwalk, Calif. The unit integrates a 10 MW/ 4.3 MWh battery energy storage system capable of immediately providing power with GE’s proven 50MW LM6000 aeroderivative gas turbine.

“The new system will help SCE better utilize the resources on the grid, provide enhanced reliability, reduce environmental impact, and reduce cost for our operations and for our customers,” said SCE President Ron Nichols. “This technology also allows us to continue to expand our use of solar, wind and other renewable resources.”

The LM6000 Hybrid EGT was developed in response to changing regulations and grid requirements in the wake of California’s Aliso Canyon energy crisis earlier this year and will ultimately support increasing renewable energy capacity on the California grid, GE said.

The Aliso Canyon natural gas storage facility was shut down in 2016 because of a leak. The site supports a significant portion of the natural gas driven generation infrastructure in Southern California and the state’s utilities and authorities have been seeking ways to fast-track energy storage projects to avoid rolling blackouts and power shortages.

The LM6000 Hybrid EGT product integrates a 10 MW lithium-ion battery energy storage system from Current and an existing GE LM6000 aeroderivative gas turbine with control system upgrades provided by GE’s Power Services. The system is designed to allow the turbine to operate in standby mode without using fuel and enable immediate response to changing energy dispatch needs.

By eliminating the need to constantly run the turbines at minimum loads to maintain spinning reserves, the LM6000 Hybrid EGT will save fuel, reduce maintenance costs and cut down on greenhouse gas (GHG) emissions, GE said. The Hybrid EGT allows SCE to reduce emissions by 60% while saving two million gallons of water annually. This is possible because the peaker no longer has to spin at minimum power to count as spinning reserve since the battery, through our advanced control system, can immediately push power to the grid while the turbine spins up, GE said.

Among the speakers that attended the event were Mary Nichols, chair, California Air Resources Board (CARB), Jill Whynot, deputy executive officer, Operations South Coast Air Quality Management (SCAQMD) and Tom Doughty, vice president, California Independent System Operator (CAISO).
