Omni Powertain’s new electric pump drive
04 May 2022
Designed for low-voltage systems
Omni Powertrain Technologies has released a new electrohydraulic pump drive combination. The company said it was developed for low-voltage mobile applications and hybrid equipment builders facing spatial constraints.

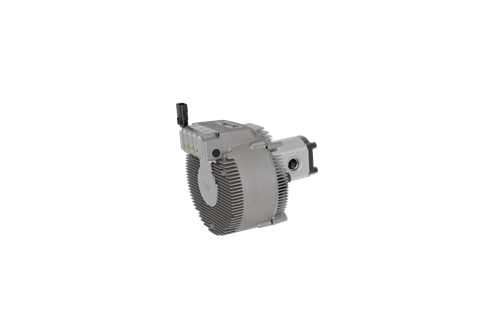

The system includes a Flo-Torq gear pump, available in displacements from 10 to 45 cc/rev, packaged with an axial flux motor and controller from Omni’s Magelec subsidiary. The overall package length of 299.7 mm (11.8 in.) offers equipment designers a compact form to power electrohydraulic traction and auxiliary functions, said the company.
Using a Magelec M17 air-cooled motor with a SAE B mount connection, the complete package weighs 17.6 kg (38.8 lb). The 48 V system is rated for 46 lpm (12 gpm) of continuous flow with a peak pressure rating of 250 bar (3625 psi).
